SDM121 Motorized Circular and Linear Depanlizer to be 480mm Cut Length
SDM121/600 Motorized Circular and Linear Depanlizer to be 600mm (24″) Cut Length
SDM121/600 Motorized Circular and Linear Depanlizer to be 600mm (24″) Cut Length
Features：

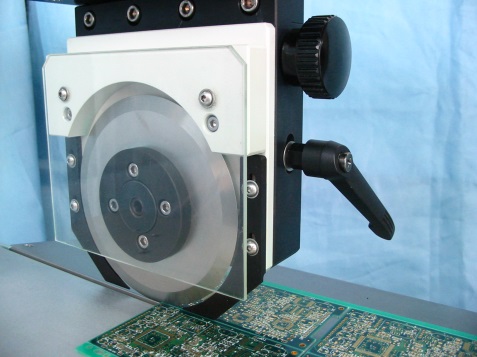

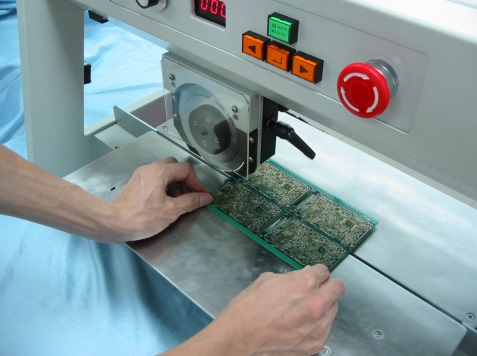

| • Motorized circular blade cuts against the linear blade ensure clean, burr-free while eliminating stress. • Separate PCB boards with component 1mm from the score line. • Quick lock design for easy circular blade setup with different PCB thickness. • Special tool steel to ensure long service life. • 3 safety light sensors and circular blade safety guides for operator safety. • Four selectable separating speeds that can be adjusted from the front rotary knob. • Digital (LEDs) readout displays the separating length. |
|||
 |
 |
 |
|
| SDM121 Technical Specifications | ||||
|---|---|---|---|---|
| SDM121 Motorized Circular and Linear Depaneling Machine | ||||
 |
PCB Thickness: 1.0mm to 3.2mm V-scoring line specification: • Depth of scoring A: ≧0.25mm (typical 1/3 PCB thickness) • Remaining PCB thickness B: Maximum 1.0mm • Component from scoring C≧ 1mm * • Scoring angle θ≧ 20° (typical) * • Max. component height D = 32mm |
|||
| SDM121 | SDM121/600 | |||
| Dimensions | 750(L)x352(D)x469(H) mm | 890(L)x352(D)x469(H) mm | ||
| Net Weight | 46 Kg | 54 Kg | ||
| Max PCB separating length | 460 mm | 600 mm | ||
| Separation | AC Motor driven | |||
| Separating speed | 200, 300, 400, 500 mm/sec | |||
| Power | 220V~50Hz /110V~60Hz (Preset) | |||
